Fabrication of grasshopper escapement assemblies - January 2009

Back Up Next

Photos show the beginnings of the grasshopper support rings. These rings will attached the individual grasshopper pallets to the balances. They are adjustable to about 30 degrees to enable changing the angle and depthing of the escapement though a small worm acting upon a toothed sector on the ring. When the assembly was attached to the end of the balance it looked too thick, third photo, and efforts were made to thin the design.

Astro 01-09.jpg (150173 bytes) Astro 01-09 (1).jpg (142934 bytes) Astro 01-09 (2).jpg (144634 bytes)

The final results are below. Notice also the worm was tapered to give it a slimmer look too.

Astro 01-09 (5).jpg (135362 bytes) Astro 01-09 (6).jpg (142171 bytes) Astro 01-09 (7).jpg (153159 bytes)

Now begins the grasshopper composer springs. These will each contain a jeweled  antifriction wheel. This design is experimental and will manipulate the grasshopper pallets against the force of gravity. In conventional designs gravity is used as an assist. It is uncertain at this time whether this design will work, but it is a beautiful complication so it will be tried. The first photo shows the slotting of a tiny cheese head screw while the other two show the milling of the springs.

Astro 01-09 (10).jpg (148595 bytes) Astro 01-09 (8).jpg (146968 bytes) Astro 01-09 (9).jpg (152750 bytes)

The last photo shows an EDM machine that will be used in the making of the antifriction wheels. Nearly all of the wheels on this movement are cut by hand on a jeweler's saw, but these are very small, and there will be a set of four identical so that this method of manufacture was chosen.

Astro 01-09 (11).jpg (148718 bytes) Astro 01-09 (12).jpg (134018 bytes) Astro 01-09 (13).jpg (140525 bytes)

The completed wheel as it emerges from the EDM machine. Next a matchstick shown for size comparison and finally a shot showing the insertion of the wheel arbor.

Astro 01-09 (14).jpg (159977 bytes) Astro 01-09 (15).jpg (157067 bytes) Astro 01-09 (16).jpg (141127 bytes)

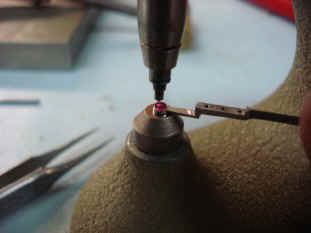

The jewels are inserted. Every pivot in the movement is jeweled. In the going train as well as the first three wheels in the remaining three trains we also use chatons to hold the jewels. In the few cases where the jewel is in a horizontal position like the upper jewels in the remontoire fly fans we also employ a jeweled dust cap. The rest of the pivots will have the jewels press-fit like this example below.

Astro 01-09 (17).jpg (158884 bytes) Astro 01-09 (18).jpg (708740 bytes) Astro 01-09 (19).jpg (150673 bytes)

Here we see the size comparison of the composer antifriction wheel as compared to one of the main wheels in the movement. Next the two composer springs are positioned and then a view of one of the composer springs' jeweled chaton pivots.

Astro 01-09 (20).jpg (136084 bytes) Astro 01-09 (21).jpg (139429 bytes) Astro 01-09 (22).jpg (137249 bytes)

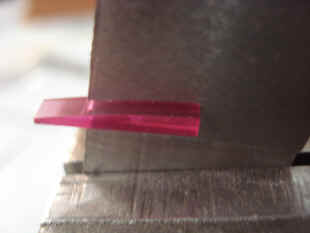

The first photo shows the beginnings of the grasshopper pivot cages. Next two show the insertion of the lower and then upper pallet jewels. These are specially shaped according to a design by the leading British expert on grasshopper escapements, Mr. Peter Hastings. This jewel shape as well as the rest of the grasshopper pallet design will prevent a common flaw in the grasshopper design. Conventional grasshopper escapements are susceptible to tripping and in a worst case, an escapement runaway. All of the jewels which are not of the round pivot type are custom cut and polished in house, (see video).

Astro 01-09 (23).jpg (143937 bytes) Astro 01-09 (24).jpg (139718 bytes) Astro 01-09 (25).jpg (123238 bytes)

We now see the beginnings of the actual pallets.

Astro 01-09 (26).jpg (110026 bytes) Astro 01-09 (27).jpg (129570 bytes) Astro 01-09 (28).jpg (114541 bytes)

The final shape of the upper pallets are shown as well as close up of the jeweled pivots.

Astro 01-09 (29).jpg (113413 bytes) Astro 01-09 (30).jpg (117578 bytes) Astro 01-09 (31).jpg (114124 bytes)

Below is a close up of the upper pallet jewels. Notice the graceful way the neck of the pallet joins the area where the jewels are held along with the decorative curl. Most fabricators would have made this part in a two dimensional fashion, skipping the extra work involved in making this exceptional detail. This extra effort is present throughout the design and manufacture of this clock.  Next we see the two pallets attached to their respective composer springs. Last photo shows the jeweled flats upon which the antifriction wheels ride. All sliding and other surfaces similar to this are jeweled.

Astro 01-09 (32).jpg (103603 bytes) Astro 01-09 (33).jpg (152302 bytes) Astro 01-09 (35).jpg (136753 bytes)

The completed right hand escapement assembly and it's insertion on the movement.

Astro 01-09 (34).jpg (133519 bytes) Astro 01-09 (36).jpg (144429 bytes)

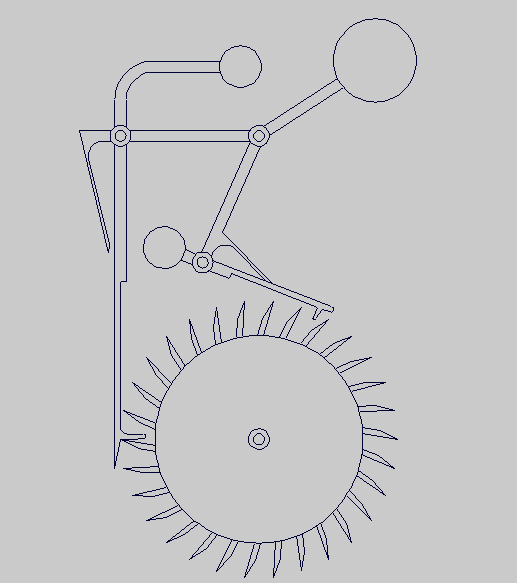

        Astro 01-09 (37).gif (191460 bytes)

                                                                                                                                        Loop:

Astro_01-09_vid.mpg   Astro_01-09_vid2.mpg   Astro_01-09_vid3.mpg   Astro_01-09_vid4.mpg   Astro_01-09_vid5.mpg   Astro_01-09_vid6.avi
