Finish power reserve indicators; prep work upper frames - April 2010

Back Up Next

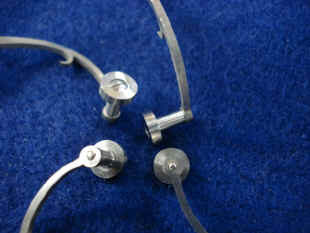

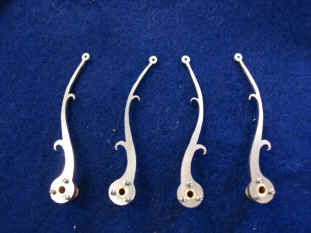

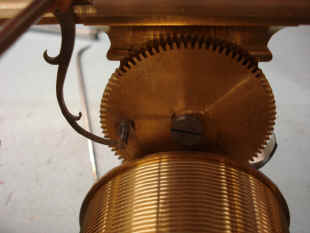

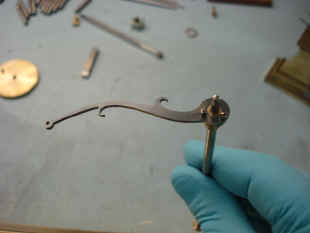

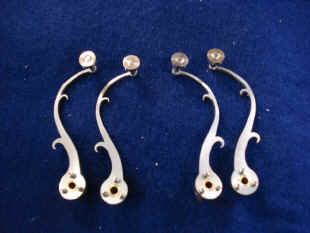

B now begins the fabrication of the steel levers for the reserve power system that will be used to move the indicator hands. One end will have a cam roller following the profile of a snail, third photo, with the other connected to the indicator hand. The first two photos show this lever, again with the signature ivy design. The last two show the lever in position next to the snail. Eventually these levers will be polished, chamfered and chiseled in the manner of Breguet and then heat blued. Notice these are handed, that is one pair is left while the other is right oriented. This was done for aesthetic reasons. In the center of the lower frame is located the planisphere, so it will be appropriate to have a mirrored pair of sector gears with their counter weights on either side. The last two photos show the full rotational angle through which the snail will turn and the lever will move.

Astro 04-10.jpg (107123 bytes) Astro 04-10 (2).jpg (146152 bytes) Astro 04-10 (7).jpg (153536 bytes)

Astro 04-10 (8).jpg (160207 bytes) Astro 04-10 (6).jpg (141308 bytes) Astro 04-10 (9).jpg (139249 bytes)

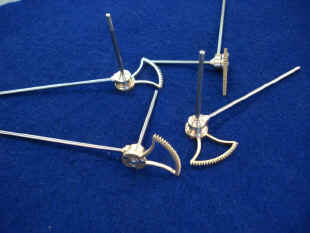

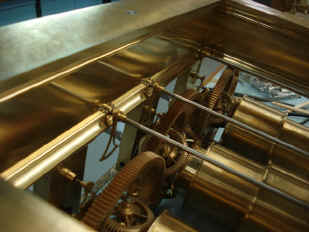

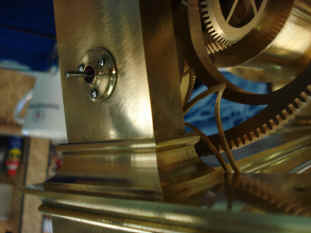

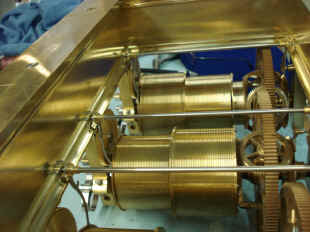

A few photos of the long, thin arbors now with the sector gear and its associated indicator hand sector gear and arbor attached.

Astro 04-10 (4).jpg (161264 bytes) Astro 04-10 (5).jpg (148923 bytes) Astro 04-10 (3).jpg (135577 bytes)

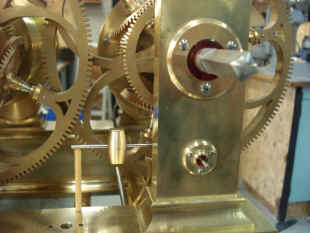

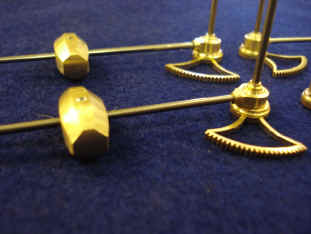

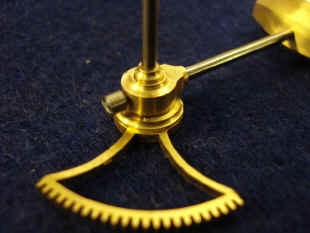

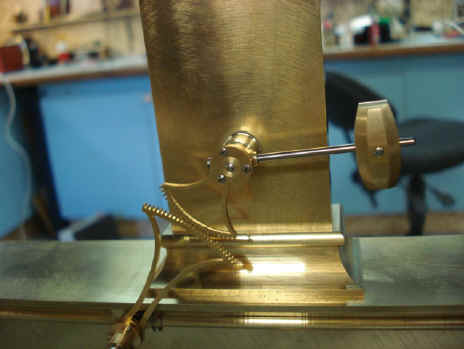

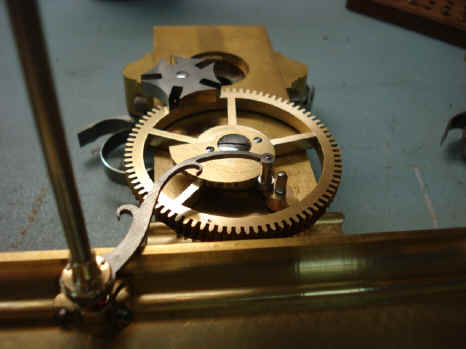

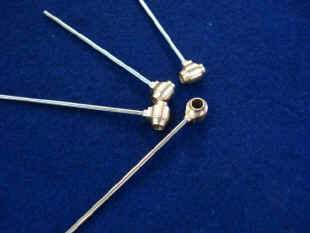

Next begin the counterweights which will be used to keep the indicator lever seated against the snail cam. Normally one would expect a simple leaf spring to be employed. Here we wanted something more visually appealing. These weights also allow us to tie their design in with those of the counter-weights in the time train dual remontoire. They will also give visual movement as the movement is wound, something that a spring would not. The second to last photo shows the completed 'front end' of the power reserve indicator system. One will readily see the counter-weight rise as the barrel is wound. The last shows the rear end where the following lever contacts the snail cam as well as the winding stop assembly.

Astro 04-10 (11).jpg (153091 bytes) Astro 04-10 (12).jpg (156096 bytes) Astro 04-10 (15).jpg (161042 bytes)

Astro 04-10 (14).jpg (162631 bytes) Astro 04-10 (21).jpg (136570 bytes) Astro 04-10 (20).jpg (145199 bytes)

Astro 04-10 (19).jpg (156055 bytes)  Astro 04-10 (25).jpg (160138 bytes)

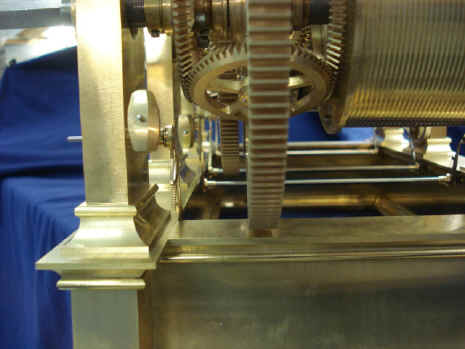

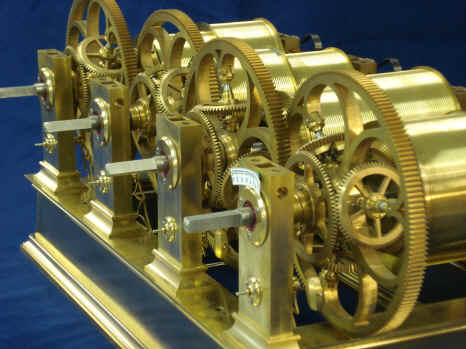

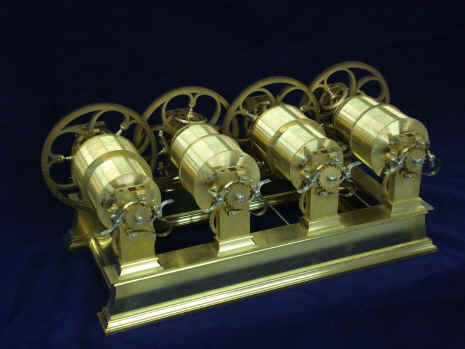

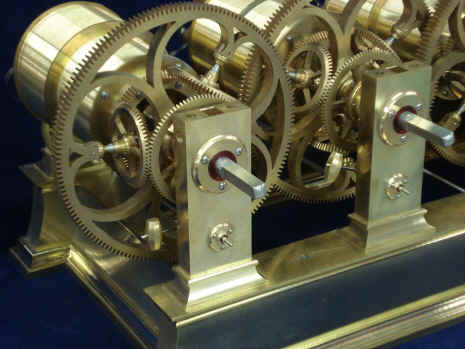

A few over all views of the completed lower section of the movement. Note the architectural detailing of the frame corner in the first photo. The rest show off the decorative great wheels with their epicyclical maintaining power systems. These will be the last time we will see the lower assembly before the addition of the rough upper frame sections.

Astro 04-10 (33).jpg (138665 bytes)  Astro 04-10 (28).jpg (897322 bytes)

Astro 04-10 (27).jpg (1448019 bytes)  Astro 04-10 (30).jpg (830964 bytes)

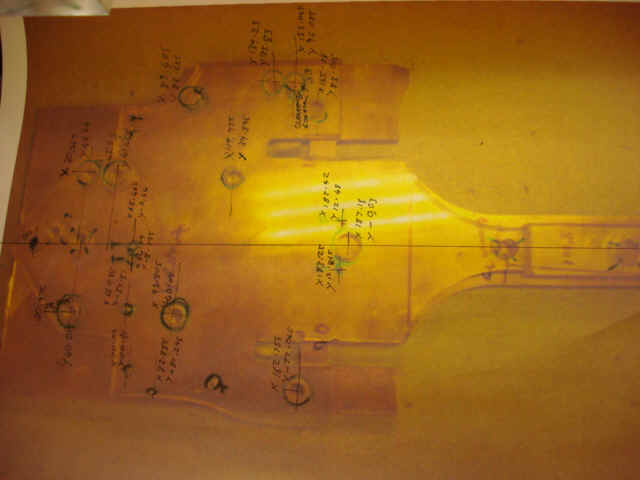

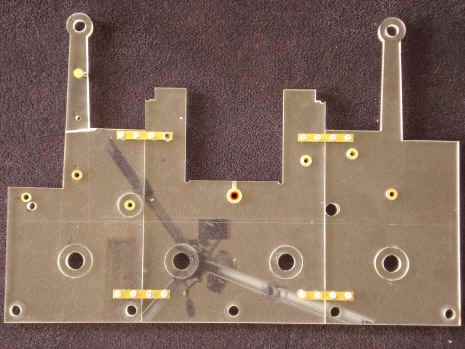

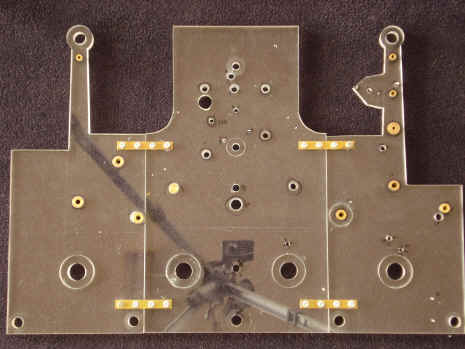

B now begins the task of transferring the wheelworks from the temporary acrylic frames where they now reside and have been beginning in March 2008 into the permanent metal frames. First he has to mark out the positions from the acrylic frames onto the mill machine for final drilling into the upper frame metal pieces. These acrylic pieces now will serve as the template for the final positioning of the wheel works. The first photo below is the center sub-plate that resides between the two main front and rear plates. The markings show the hole coordinates. Next two photos show the main plates.

                                   Astro 04-10 (36).jpg (147021 bytes)

Astro 04-10 (35).jpg (930637 bytes)  Astro 04-10 (37).jpg (964851 bytes)

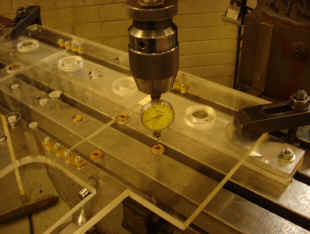

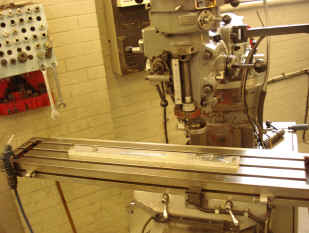

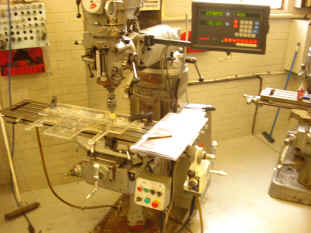

B uses the digital plotter on the mill to pick up where each hole is on the plastic frames. They now serve as a template for the mill to be able to later drill holes in the exact positions in the final metal frame parts. Obviously this task needs attention to detail to avoid any mistakes. Special attention is paid to positioning of the plastic to metal parts. The first photo shows the jig that is attached to the mill bed and will be used to accurately position first the acrylic and then the metal parts through the use of positioning pins. Once the acrylic frame is secured each hole must be located and its X-Y position recorded into the mill. First the exact center of each hole must be located using a feeler gauge accurate to 1/100 millimeter, second photo. Once this is found the position is recorded into a digital plotter, third photo. B does not use any computer aided machining, i.e. CAM. The digital readout acts as a very accurate way to position the mill head, but the machining is not controlled by computer.

Astro 04-10 (38).jpg (948641 bytes) Astro 04-10 (40).jpg (827858 bytes) Astro 04-10 (41).jpg (920545 bytes)

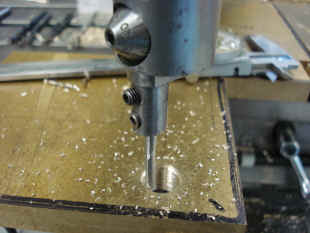

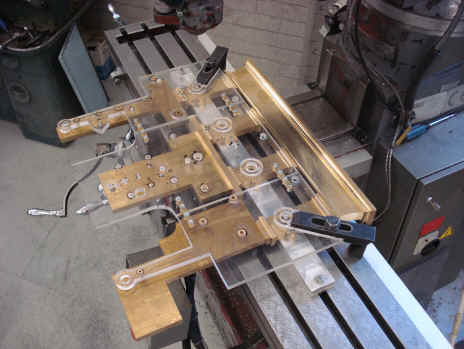

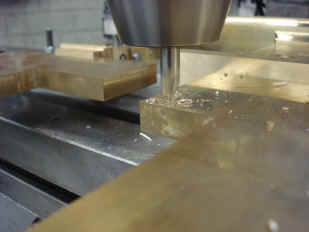

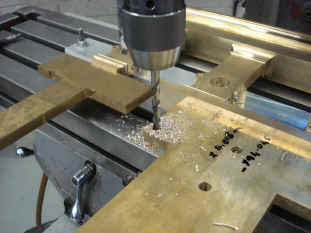

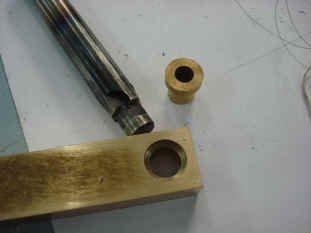

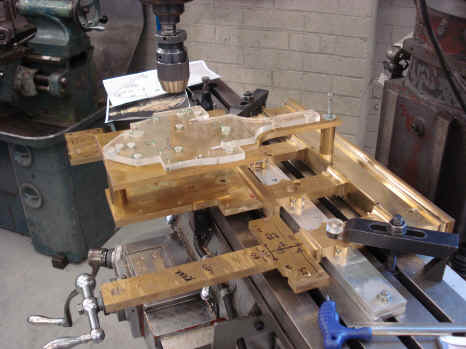

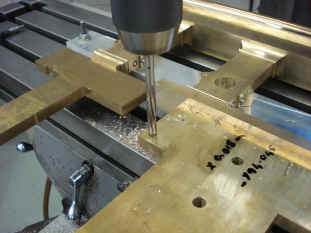

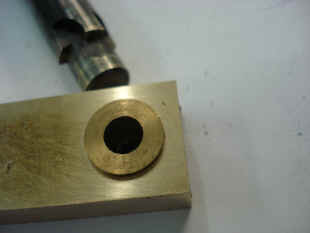

To double check the hole positions the original acrylic frame components are used as a template and are placed over the metal pieces to be drilled. The positions of the holes on the acrylic pieces are located and read off of a digital plotter. Next begins the drilling. For moderately sized holes the first step in this process is to drill a pilot hole, then the full sized hole and finally a reamer to finish. Larger holes are drilled with a small router bit mounted to the mill head, sixth photo. The last two photos show the use of a counter-bore to create a counter-sunk hole for the installation of a bush.

Astro 04-10 (42).jpg (931061 bytes)  Astro 04-10 (47).jpg (915833 bytes)

Astro 04-10 (43).jpg (794968 bytes) Astro 04-10 (44).jpg (831688 bytes) Astro 04-10 (45).jpg (850315 bytes)

Astro 04-10 (49).jpg (951596 bytes) Astro 04-10 (51).jpg (803432 bytes) Astro 04-10 (52).jpg (784441 bytes)

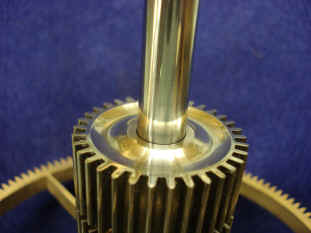

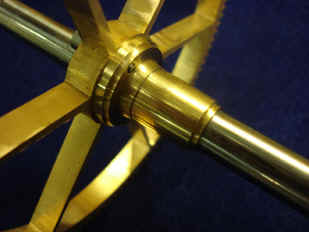

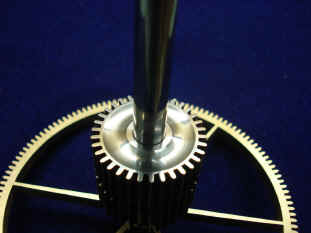

The next photos show how the larger pinion faces will be finished off. One does not want a simple flat face on a large pinion as this makes the part look clumsy and larger than it would otherwise. Note also the very high pinion leaf count; and is typical throughout the movement.  The third photo shows the final machining design of a typical wheel collet. Each collet requires five separate steps to achieve the final profile.

Astro 04-10 (57).jpg (763037 bytes) Astro 04-10 (59).jpg (874783 bytes) Astro 04-10 (60).jpg (849758 bytes)

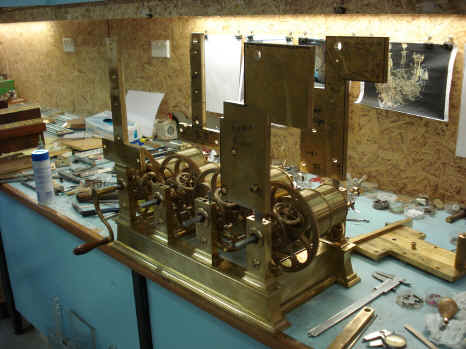

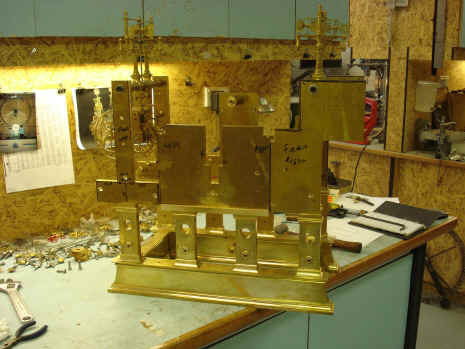

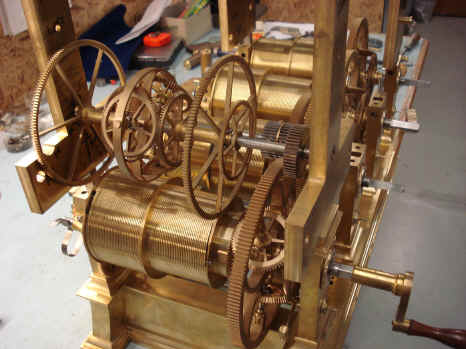

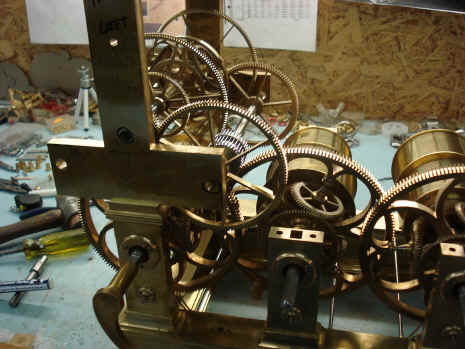

The roughed out upper frame pieces are fitted to the completed lower frame and checked for fit. The remontoire differential is the first set of movement parts to be inserted within the upper metal frame components.

Astro 04-10 (53).jpg (875185 bytes)  Astro 04-10 (50).jpg (823022 bytes)

Astro 04-10 (54).jpg (863718 bytes)  Astro 04-10 (55).jpg (931992 bytes)



                                                                                      Loop:

                                                                                                                    Astro_04-10_vid1   Astro_04-10_vid2
