Fabrication of pendulum balance assemblies - Begin balances, November 2008, page 2

Back Up Next

First photo shows rough rod blank being prepared for sectioning into four parts that will become the balance spheres (shiny rings). Next is initial cutting and last final rough shape.

Astro 11-08a.jpg (148383 bytes) Astro 11-08a (1).jpg (138391 bytes) Astro 11-08a (3).jpg (160187 bytes)

First the sectioned off rough blanks next to a semi-finished sphere. Next a nearly finished sphere just before parting from its mating material. Notice how the sphere is nearly complete in its surface polish which would make sense as it is conveniently still attached and mounted to the lathe. Last, finished spheres.

Astro 11-08a (2).jpg (157693 bytes) Astro 11-08a (4).jpg (859680 bytes) Astro 11-08a (5).jpg (132423 bytes)

Next six photos show the fabrication of the sphere mounting forks which will attach the those to the balances.

Astro 11-08a (56).jpg (138986 bytes) Astro 11-08a (58).jpg (143020 bytes) Astro 11-08a (59).jpg (163443 bytes)

Astro 11-08a (60).jpg (161266 bytes) Astro 11-08a (61).jpg (144580 bytes) Astro 11-08a (62).jpg (151533 bytes)

Finished mounting forks with sphere to the balance. Notice the nice turning work on the neck along with the taper of the fork as it meets the balance plate. Another example of fine work reminiscent of the 18th and 19th century master makers.

Astro 11-08a (28).jpg (146510 bytes) Astro 11-08a (29).jpg (144047 bytes)

At this point we begin the fabrication of the balances themselves. Up to this point I had every intention of having the balances replicate those that were on the original marine chronometer by John Harrison - H1.  This was the only part of this clock's escapement assembly that was unaltered from his original design. However, considering the overall curvilinear design of the rest of the clock, and the fact that balances would be a major visual component of the movement, I decided to as the fabricator for different ideas. His firm produced several designs, not all of which are shown below.. The first was rejected outright. The straight outline was to be retained. The second looked too much like a Maltese Cross and was too heavy looking. It also would have interfered with poising / timing weights that needed to slide align the vertical axis as was the case in Harrison's original design. I like third and forth design. So why not combine both! This is what was finally chosen.

Astro 11-08a (42).jpg (245095 bytes) Astro 11-08a (43).jpg (487232 bytes) Astro 11-08a (44).jpg (539578 bytes) Astro 11-08a (41).jpg (488754 bytes)

Next the chosen design is incorporated into the mockup. The lesson learned from the pendulum antifriction wheel cages taught us that what might look good on paper, or even in a reproduction in wood by itself, might look very different when incorporated into the movement mockup as a whole.

 Astro 11-08a (47).jpg (145414 bytes)  Astro 11-08a (48).jpg (154021 bytes)

Now the fabrication of the balances begins. The wood filigrees that were made to be incorporated into the mockup wooden balances are now removed and placed on the plates to "eyeball" their positioning.

Astro 11-08a (49).jpg (152870 bytes) Astro 11-08a (50).jpg (158592 bytes) Astro 11-08a (51).jpg (156323 bytes)

First the location of the balance anchor is determined; where it will be attached to the inner arbor antifriction wheel plate. Then the perimeter and some strategic holes are made; then initial cutouts are made.

Astro 11-08a (52).jpg (149093 bytes) Astro 11-08a (53).jpg (160782 bytes) Astro 11-08a (55).jpg (150741 bytes)

Further cutouts shown in the first photo. In the meantime we began to look at the final design for the main balance support frame. If one looks at the initial mockup we see a simple diamond design. Given the overall mockup makeup, this was sufficient. However, now that we are refining the design as we go along (making it more fancy!) I asked for some suggestions. Two designs were submitted below. the second was along the lines of the original mockup design, with the first more in keeping with the overall curvilinear frame design. I chose the the first, fancier design.

Astro 11-08a (54).jpg (151438 bytes) Astro 11-08a (63).jpg (129210 bytes) Astro 11-08a (64).jpg (124594 bytes)

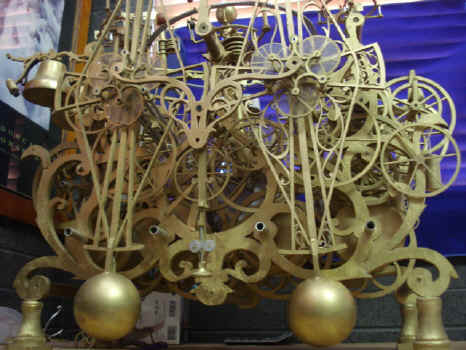

The  balance support was tested in the mockup to see how it fits with the balance and overall frame design.

Astro 11-08a (65).jpg (142973 bytes) Astro 11-08a (66).jpg (151584 bytes)

The remaining photos show the overall movement progress to date.

Astro 11-08a (68).jpg (902310 bytes) Astro 11-08a (70).jpg (868725 bytes)

Astro 11-08a (73).jpg (151567 bytes) Astro 11-08a (67).jpg (149417 bytes)

Astro 11-08a (71).jpg (147290 bytes) Astro 11-08a (72).jpg (149125 bytes)

                      Astro 11-08a (69).jpg (929757 bytes)
