Main wheels, barrels and maintaining power, July - September 2007

Back Up Next

The first two photos show the pile of raw materials (brass and bronze) for the clock. There is approximately 1200 lb. which will eventually be machined down to about 250 lb.   The third photo shows the first cut made on June 28, 2007.

Astro main wheels.jpg (1162705 bytes) Astro main wheels (1).jpg (1014386 bytes) Astro main wheels (2).jpg (608753 bytes)

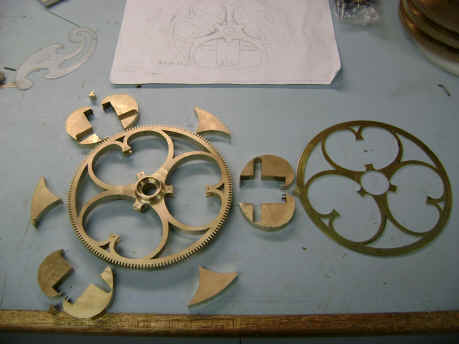

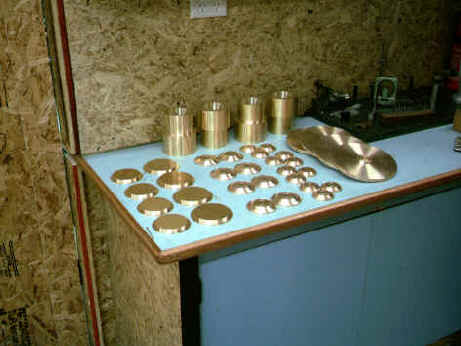

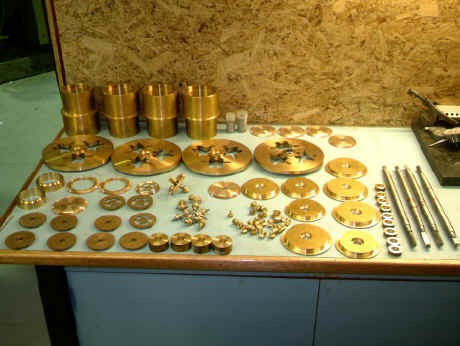

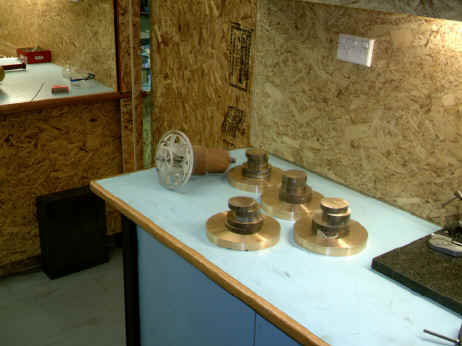

The first photo shows the rough wheel disks next to the working mockup of the main wheel system. The next shows further machining with barrels and bevel wheel blanks for the maintaining power system. Third photo, all parts for the four main wheels are shown in the rough; 144 parts. Fourth photo shows the cutting of the metal template that will be used to scribe the four main wheels. This as well as all wheels are cut by hand using a jeweler's saw under high magnification. This results in very accurate first cuts, which later minimizes time needed in final finishing and polishing. Next the rough blanks are cut out to reveal the final heart-shaped openings for the planetary wheels. Notice the drawing in the background. There are no overall design-to-build drawings that were made up before construction began. We are taking each part of the clock like these main wheels, designing and building as we go. The wood mockup gives us the overall guidance for proportion and component conflicts.

Astro main wheels (3).jpg (694789 bytes) Astro main wheels (4).jpg (794046 bytes)

Astro main wheels (5).jpg (745426 bytes) Astro main wheels (15).jpg (1309914 bytes)

Astro main wheels (6).jpg (1270914 bytes)

Below the main wheel, barrel and planetary maintaining power system begin to take shape. Each has three planet wheels. Note the nicely shaped collet in the fourth photo. Here we see for the first time an arbor used in the project. We have decided to use stainless steel for all of the silver steel, including arbors. However, stainless is not a suitable material for pivot material, it acts "sticky' when used as a pivot, and therefore we insert a hardened tool steel for those at each end of each stainless steel arbor that will run in a jewel bearing. Of course this will not be necessary if the arbor turns within a ball bearing. The type of stainless used is number 316. Alloy 316/316L is molybdenum-bearing austenitic stainless steel. The higher nickel and molybdenum content in this grade allows it to demonstrate better overall corrosion resistant properties than 304, especially with regard to pitting and crevice corrosion in chloride environments.

Stainless steel used in high wear positions, all of the pinions, is Stavex. Uddeholm Stavax ESR is a premium grade stainless tool steel with the following properties: good corrosion resistance, excellent polishability, good wear resistance, good machinability, good stability in hardening The combination of these properties gives a steel with outstanding production performance.

Astro main wheels (7).jpg (1262512 bytes) Astro main wheels (8).jpg (1276487 bytes)

  Astro main wheels (9).jpg (146601 bytes)   Astro main wheels (10).jpg (36574 bytes)

These two photos depict a main wheel from the famous Jens Olsen astronomical clock built  from 1944 to 1955 located in Copenhagen, Denmark. This reflects the conventional way a planetary maintaining power system would be arranged. When assembled most of the planetary/sun system is hidden. In my design, the planet wheels are perpendicular to the central sun wheel, allowing the whole to be fully exposed to view.

  Astro main wheels (19).jpg (46279 bytes)   Astro main wheels (20).jpg (46713 bytes)

All four wheels are done in the rough, prior to final polishing. Next the main frame plates are cut from a single piece of 1/2" (1.2 cm) thick brass stock. The single plate is 2 x 4 feet across weighing over 100 lb. Finally the four main wheels are mounted between the plates. Parts count for this subassembly 322.

Astro main wheels (11).jpg (1322219 bytes) Astro main wheels (14).jpg (1241973 bytes)

Astro main wheels (12).jpg (146898 bytes) Astro main wheels (13).jpg (148042 bytes)



                                  Astro_main_wheels_vid_16.avi   Astro_main_wheels_vid_17.avi  Astro_main_wheels_vid_18.avi
