Back Up Next   Construction of full scale mockup, January to June 2006

The full scale mockup was constructed over a six month period from January through June of 2006.

Astro 01-06 to 06-06 (2).jpg (551709 bytes) Astro 01-06 to 06-06 (1).jpg (560092 bytes) Astro 01-06 to 06-06 (4).jpg (707147 bytes)

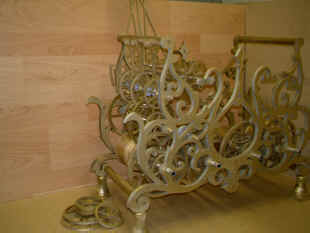

First photo shows the differential remontoire drive (center wheel cluster) which is at the heart of the dual drive system. These are coupled to the two counter-rotating escapement wheels shown in the center and last photo.

Astro 01-06 to 06-06 (5).jpg (642420 bytes) Astro 01-06 to 06-06 (6).jpg (655676 bytes) Astro 01-06 to 06-06 (7).jpg (672002 bytes)

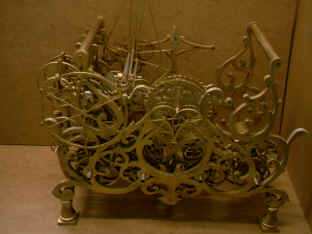

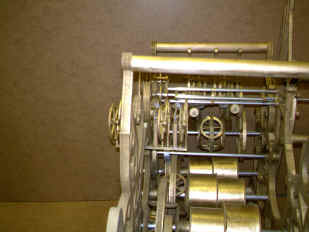

Several individual parts: first the escapement wheels and their drive bevels. Next two the remontoire drives.

Astro 01-06 to 06-06 (3).jpg (529742 bytes) Astro 01-06 to 06-06 (9).jpg (553360 bytes) Astro 01-06 to 06-06 (8).jpg (550906 bytes)

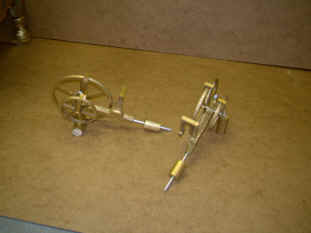

Further photos of the remontoire and overall views.

Astro 01-06 to 06-06 (11).jpg (470855 bytes) Astro 01-06 to 06-06 (10).jpg (664069 bytes) Astro 01-06 to 06-06 (12).jpg (639224 bytes)

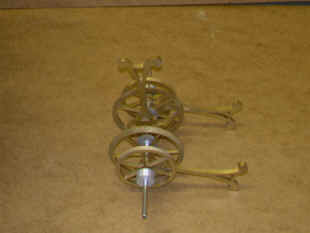

Initial fly fan assemblies. Next the bell hammer pulls, and next the first and main dial, the mean solar time and equation of time dial.

Astro 01-06 to 06-06 (14).jpg (516753 bytes) Astro 01-06 to 06-06 (15).jpg (645777 bytes) Astro 01-06 to 06-06 (16).jpg (683773 bytes)

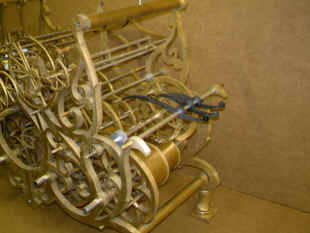

More components are added culminating with the balances in the last photo.

Astro 01-06 to 06-06 (17).jpg (697489 bytes) Astro 01-06 to 06-06 (18).jpg (678552 bytes) Astro 01-06 to 06-06 (19).jpg (540275 bytes)

Second photo shows the initial naive fly fan concept on the left.

Astro 01-06 to 06-06 (22).jpg (601798 bytes) Astro 01-06 to 06-06 (20).jpg (699130 bytes) Astro 01-06 to 06-06 (21).jpg (688750 bytes)

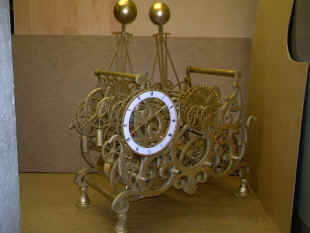

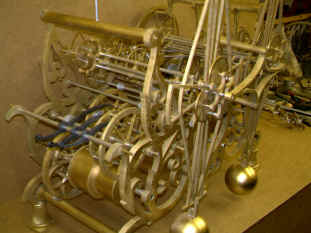

Fly fans now fully developed in their dual, four-bladed compound 'tourbillon' configuration. Last photo shows their position on the mockup from the rear.

Astro 01-06 to 06-06 (26).jpg (484604 bytes) Astro 01-06 to 06-06 (27).jpg (530609 bytes) Astro 01-06 to 06-06 (23).jpg (787629 bytes)

The fly fan assemblies as viewed from the front, next from above.

Astro 01-06 to 06-06 (24).jpg (644868 bytes) Astro 01-06 to 06-06 (25).jpg (664178 bytes) Astro 01-06 to 06-06 (28).jpg (749572 bytes)

The center photo shows the initial concept for the sun/moon rise/setting dial system, next another shot of the fly fan tourbillon.

Astro 01-06 to 06-06 (29).jpg (656897 bytes) Astro 01-06 to 06-06 (30).jpg (686619 bytes) Astro 01-06 to 06-06 (31).jpg (754850 bytes)

Rear view of the shots from above; the sun/moon rise/setting dials as well as the perpetual calendar indicators.

Astro 01-06 to 06-06 (32).jpg (728599 bytes) Astro 01-06 to 06-06 (33).jpg (653763 bytes) Astro 01-06 to 06-06 (34).jpg (592863 bytes)

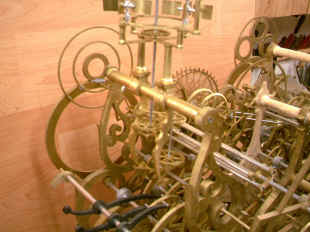

Getting close to completion. The last photo begins our concept for the grand orrery.

Astro 01-06 to 06-06 (35).jpg (766867 bytes) Astro 01-06 to 06-06 (36).jpg (789086 bytes) Astro 01-06 to 06-06 (37).jpg (736189 bytes)

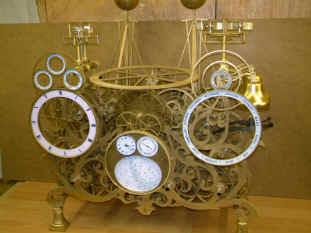

First shot shows a few wheels in connection with the equation of time system. Next the rear shot, but still lacking all of the final wheel work that will later appear. Finally in the last photo the grand orrery.

Astro 01-06 to 06-06 (38).jpg (639145 bytes) Astro 01-06 to 06-06 (39).jpg (685759 bytes) Astro 01-06 to 06-06 (40).jpg (757893 bytes)

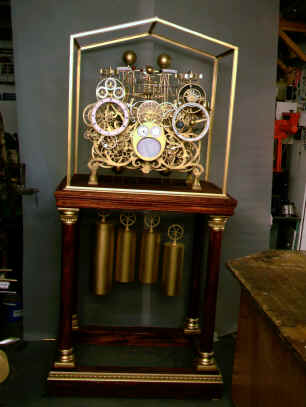

These photos are the mockup as completed on the stand and case as envisioned to date. If only the real movement in metal could be constructed so quickly!

Astro 01-06 to 06-06 (41).jpg (763934 bytes) Astro 01-06 to 06-06 (43).jpg (722537 bytes) Astro 01-06 to 06-06 (42).jpg (821240 bytes)



Below are a few videos of the process. Pay special attention to the first video of the fabricator's youngest son taking the mockup for a "test drive"!



Loop:

Astro_01-06_to_06-06_vid.avi   Astro_01-06_to_06-06_vid_2.AVI  Astro_01-06_to_06-06_vid_4.AVI   Astro_01-06_to_06-06_vid_3.AVI  (THESE TAKE A MINUTE TO LOAD)
