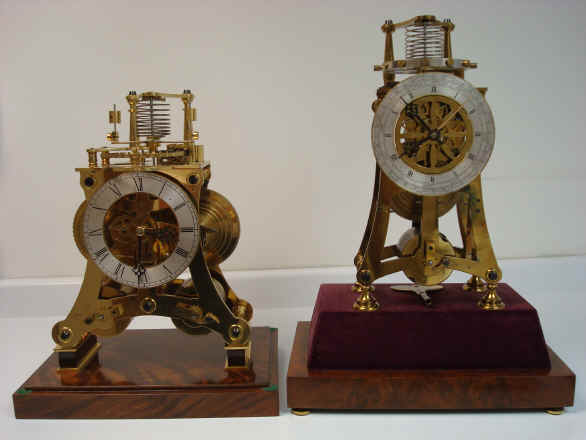

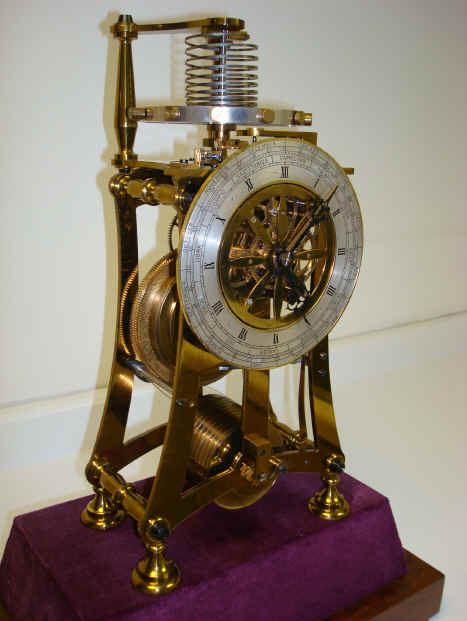

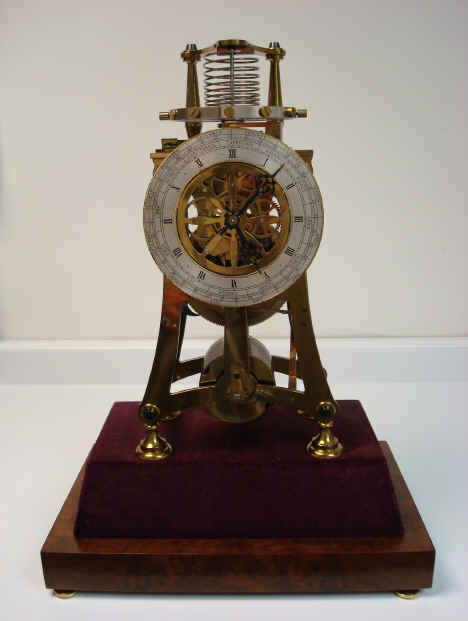

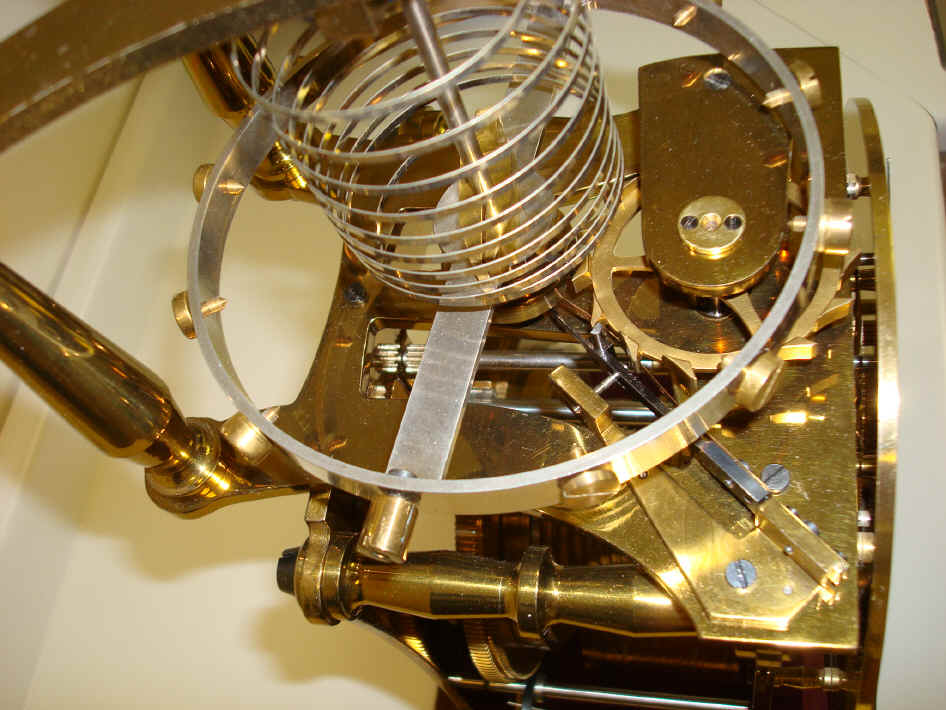

Maker, E. Dent, London, England, c.1970's. 16" x 8"w x 6"d excluding base and case. Another nice example from this quality clock maker. Thomas Earnshaw style spring detent escapement with helical spring, chronometer escape wheel. Chronometer wheel diameter 4 1/2", 4 second period. Day indicator hand revolves once per year. Everything about the escapement is huge and robust. Escape arbor rides in roller bearings. Due to the large mass of the chronometer wheel and spring there is a greater demand for power; the spring barrel has two springs. This clock was made as a sister piece to another chronometer model by the same firm to show off details of the chronometer escapement. Note the very steep profile of the 4" diameter fusee and compare this to the more gentle profile in the E. Dent, Congreve model.

Click on photos for more details

Dent chrono 1 (1).JPG (873904 bytes)   Dent chrono 1 (2).JPG (1034574 bytes)

Dent chrono 1 (9).JPG (1086227 bytes)

                                           Dent chrono 1 (10).JPG (941967 bytes)



                                  Loop:

Dent_chrono_1_mov_4.MPG   Dent_chrono_1_mov_6.MPG  Dent_chrono_1_mov_5.MPG  Dent_chrono_1_mov.MPG  Dent_chrono_1_mov_2.MPG  Dent_chrono_1_mov_3.MPG

Provenance: Derek Roberts 1994
